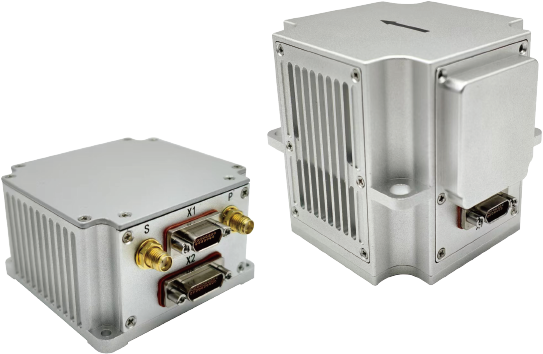

SNC500E-A0/A1/A2 integrated navigation system consists of two parts: inertial measurement components and navigation components. The inertial measurement components include inertial devices such as fiber optic/MEMS gyroscopes and MEMS accelerometers, which are responsible for completing inertial measurement and compensation. The navigation components include satellite navigation boards and calculation interface circuits. The system utilizes multi-sensor fusion navigation algorithms to provide high-precision attitude, velocity, and position information to meet the measurement and control requirements.

Physical Dimensions and Electrical Index
Voltage	10-36VDC
Power Consumption	≤10W
Size	78mm×78mm×80mm(Inertial components） 98mm×78mm×86mm(Inertial components with shock absorption) 70mm×74mm×43mm（Navigation components）
Weight	≤500g(Inertial components with shock absorption) ≤200g(Navigation component)
Environmental Index
Working Temperature	-40℃~+60℃
Storage Temperature	-45℃~+70℃
Vibration	5~2000Hz，6.06g
Shock	30g，11ms
Lifetime	>10 years
Continuous Working Time	>24h
Interface Features
RS422×2
RS232×1
PPS×1
Antenna Interface（TNC）×2
Network Interface×1

System Performance Index		A0	A1	A2
Position Accuracy	GNSS Valid，Single Point（RMS)	1.2m	1.2m	1.2m
	GNSS Valid，RTK（RMS）	2cm+1ppm	2cm+1ppm	2cm+1ppm
	Position Maintenance（GNSS Invalid）（CEP）	80m/5min 200m/10min 1nm/30min 5nm/1h	100m/5min 300m/10min 5nm/30min	200m/5min 500m/10min
	Odometer/DVL	1%D	2%D	5%D
Heading Accuracy (RMS)	Self North-seeking Accuracy（10min,RMS）	0.3°SecL	0.5°SecL	0.5°SecL
	Dual Antenna（RMS）	0.2°/L	0.2°/L	0.2°/L
	Heading Maintenance（GNSS Invalid）	0.5°/h	0.3°/30min	1°/10min
Attitude Accuracy (RMS)	GNSS Valid（RMS）	0.05°	0.05°	0.05°
Attitude Accuracy (RMS)	Attitude Maintenance（GNSS Invalid）	0.1°/h	0.1°/30min	0.1°/10min
Velocity Accuracy (RMS)	GNSS Valid，Single Point L1/L2	0.1m/s	0.1m/s	0.1m/s
Velocity Accuracy (RMS)	Velocity Maintenance（GNSS Invalid）	5m/s /h	5m/s /30min	5m/s /10min
