SNC200A-F0
Product type:
Views:
  • Details
  • Specifications

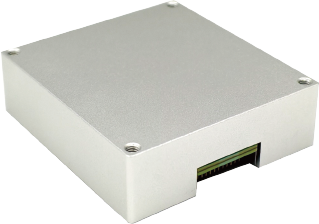

SNC200A-F0 is an Inertial Measurement Unit (IMU) based on Micro Mechanical Systems (MEMS) technology, equipped with high-performance MEMS gyroscopes and accelerometers, capable of outputting 3-axis angular velocity, 3-axis acceleration, 3-axis magnetometer, and temperature.

SNC200A-F0 has high reliability and strong environmental adaptability. By matching different software, the product can be widely applied in fields such as autonomous driving, industry drones, motion communication, high-precision map acquisition, and stable platforms.


Physical Dimensions and Electrical Index

Voltage

3.3v

Power Consumption

2W

Size

47mm×44mm×14mm

Weight

50g

Environmental Index

Working Temperature

-40℃~+80

Storage Temperature

-55℃~+85℃

Vibration

5~2000Hz6.06g

Shock

1000g0.5ms

MTBF

>20000h

Continuous Working Time

>120h

Interface Features

SPI

CAN

System Performance Index

                   Test conditions

Index

Gyro

Range

480°/s

Bias Stability 10s average-40℃~+80constant temperature

1.5°/h@Allan

Zero bias

Bias range

±0.005°/s

Zero bias variation within the full temperature range

±0.005°/s

Start repeatability

10°/h

Scale factor non-linearity

100ppm

Bandwidth

250Hz

Accelerometer

Range

20g

Bias Stability 10s average-40℃~+85constant temperature

0.1mg

Zero bias

Bias range

0.3mg

Zero bias variation within the full temperature range

1mg

Scale factor non-linearity

100ppm

Bandwidth

250Hz
