SNC200G-C0
Product type:
Views:
  • Details
  • Specifications

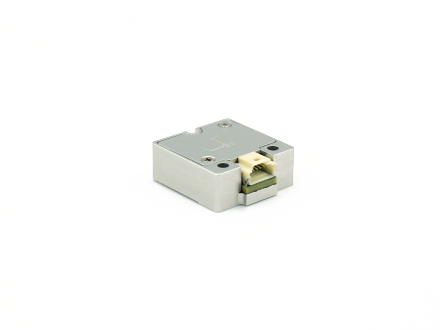

SNC200G-C0 is an Inertial Measurement Unit (IMU) based on Micro Mechanical Systems (MEMS) technology, equipped with high-performance MEMS gyroscopes and accelerometers, capable of outputting 3-axis angular velocity, 3-axis acceleration, 3-axis magnetometer, and temperature.

SNC200G-C0 has high reliability and strong environmental adaptability. By matching different software, the product can be widely applied in fields such as autonomous driving and industrial drones.






Physical Dimensions and Electrical Index

Voltage

5V±0.5V

Power Consumption

≤0.5W

Size

24mm×22.4mm×9mm

Weight

10g

Environmental Index

Working Temperature

-40℃~+70

Storage Temperature

-45℃~+75℃

Vibration

5~2000Hz6.06g

Shock

20g11ms

MTBF

>20000h

Continuous Working Time

>120h

Interface Features

LVTTL×1

SYNC×1

System Performance Index

                   Test conditions

Index

Gyro

Range

±500°/s

Bias Stability 10s average-40℃~+70constant temperature

10°/h@Allan

Zero bias

Bias range

±0.1°/s

Zero bias variation within the full temperature range

±0.05°/s

Scale factor non-linearity

100ppm

Bandwidth

200Hz

Accelerometer

Range

±16g

±200g

Bias Stability 10s average-40℃~+70constant temperature

0.5mg

Zero bias

Bias range

5mg

Zero bias variation within the full temperature range

1mg

Scale factor non-linearity

200ppm

Bandwidth

200Hz

Other

Start time

≤1.5s

Delay

5ms
