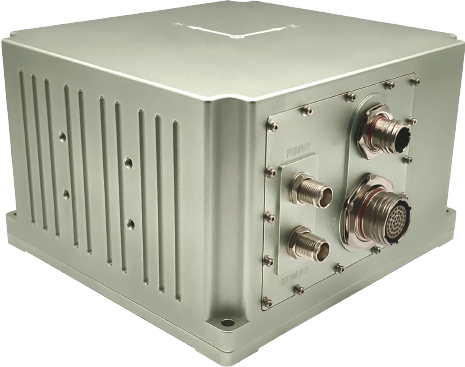

SNC300D-A0
Product type:
Views:
  • Details
  • Specifications

SNC300D-A0 is based on cost-effective closed-loop fiber optic gyroscope, accelerometer and high-end GNSS receiving board. By realizing multi-sensor fusion and navigation algorithm.

SNC300D-A0 can meet the precise measurement requirements of attitude, heading and position in medium-high precision mobile measurement systems and large unmanned aerial vehicles.


Physical Dimensions and Electrical Index

Voltage

12-36VDC

Power Consumption

≤24W

Size

188.8mm×176.8mm×117mm

Weight

≤5kg

Environmental Index

Working Temperature

-40℃~+60℃

Storage Temperature

-45℃~+70℃

Vibration

5~2000Hz3.03g(with shock absorbers)

Shock

30g11ms(with shock absorbers)

Lifetime

>15 years

Continuous Working Time

>24h

Interface Features

RS422×3

RS232×2

EVENT×1

PPS×1

Antenna InterfaceTNC×2

Grounding Post×1

Odometer Differential Level Reception×1

Network Interface×1

System Performance Index


Test conditions

Index

Position Accuracy

Single PointRMS)

1.2m

RTKRMS

2cm+1ppm

Post ProcessingRMS

1cm+1ppm

Loss of lock AccuracyRMS

2nmLoss Lock 60minDual position alignment

Heading Accuracy

Integrated AccuracyRMS

0.1°Vehicle conditionsmaneuvering

Post ProcessingRMS

0.01°

Loss of Lock AccuracyRMS

0.05°Loss Lock 60min

Self North-seeking  AccuracyRMS

0.1°SecLAlign for 15mindual position alignment

Attitude Accuracy

Integrated AccuracyRMS

0.01°

Post ProcessingRMS

0.006°

Loss of lock AccuracyRMS

0.02°Loss Lock 60min

IMU Performance Index

Gyro

Range

300°/s

Bias Stability

0.02°/h(10s Average)

Accelerometer

Range

±16g

Bias Stability

50μg(10s Average)
